With dual independent extruders capable of 500ºC, an actively-heated chamber reaching 100ºC, and a triple-motor, true-self-leveling 200ºC bed, coupled with the fully open material system, the 22 IDEX v4 unlocks another level of automation, ease-of-use, and affordability for high-temp additive manufacturing.
HIGH-PERFORMANCE MATERIALS,
STRAIGHT OUT OF THE BOX
STRONG parts. Functional Polymers.
Parts you can sell, materials you can print jigs and fixtures from, vacuum molds, press brake tooling - if it can be 3D printed, there's a good chance you can do all that and more, on the 22 IDEX v4.
Aerospace-grade replacement parts, tooling, fixtures
Autoclavable, sterilizable tools for medical applications
Rigid, chemical & radiation resistant polymer composites
High-temp, metal-replacement thermoplastics
Under-the-hood in race cars, to satellites in space - whether you're a one-man operation, or a 20,000+ employee aerospace company, this machine can get your job done.
FEATURES

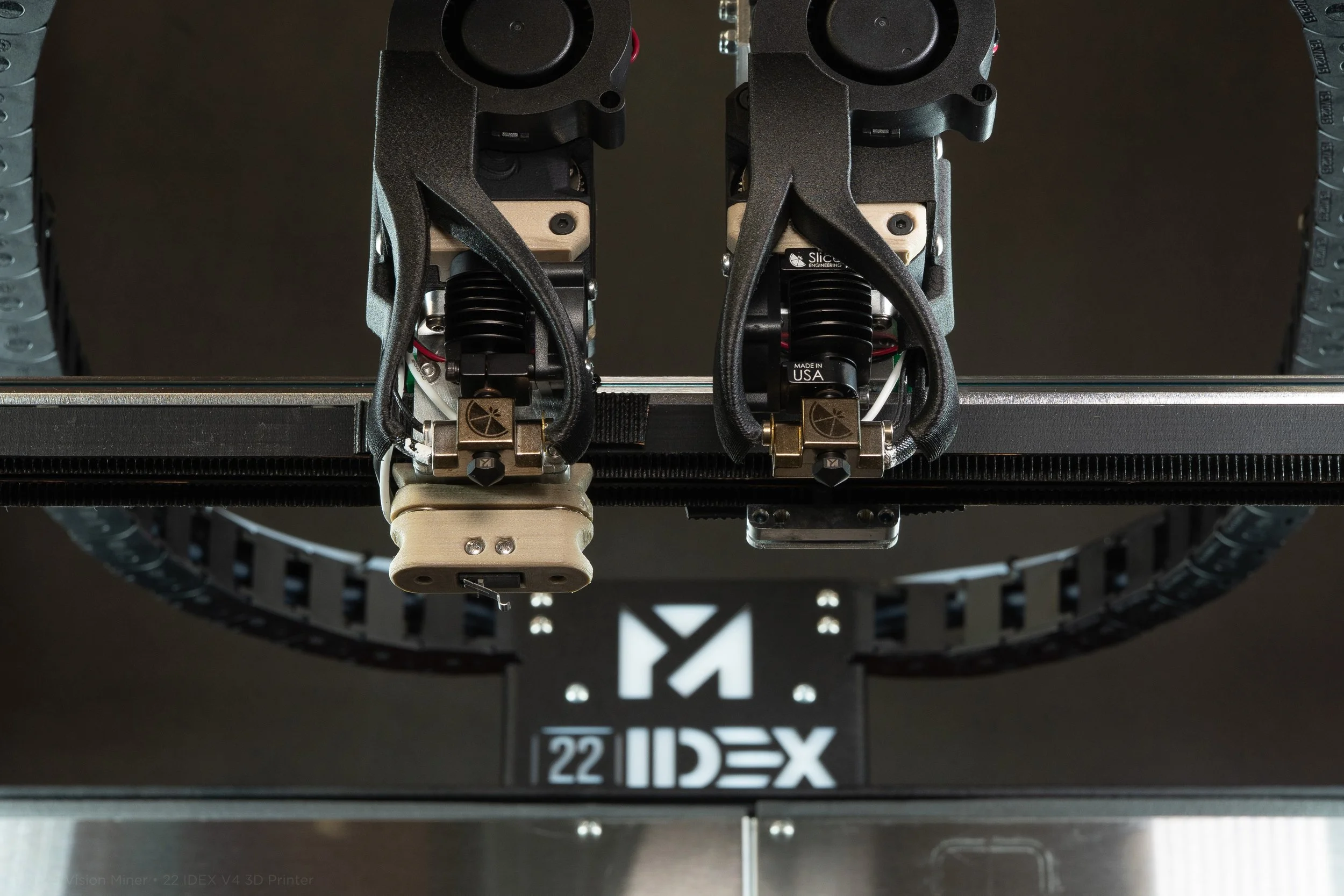

Independent Dual-Extruder Hotends
Maximum temperatures give you the ability to print any Performance Thermoplastic on the market, from PLA to PEEK, PEKK, ULTEM™ , PPSU, and more.
Unlike other machines, BOTH hotends reach the full 500ºC, enabling multi-material, duplication mode, mirror mode, and full use of supports - soluble and otherwise.
500ºC Nozzles

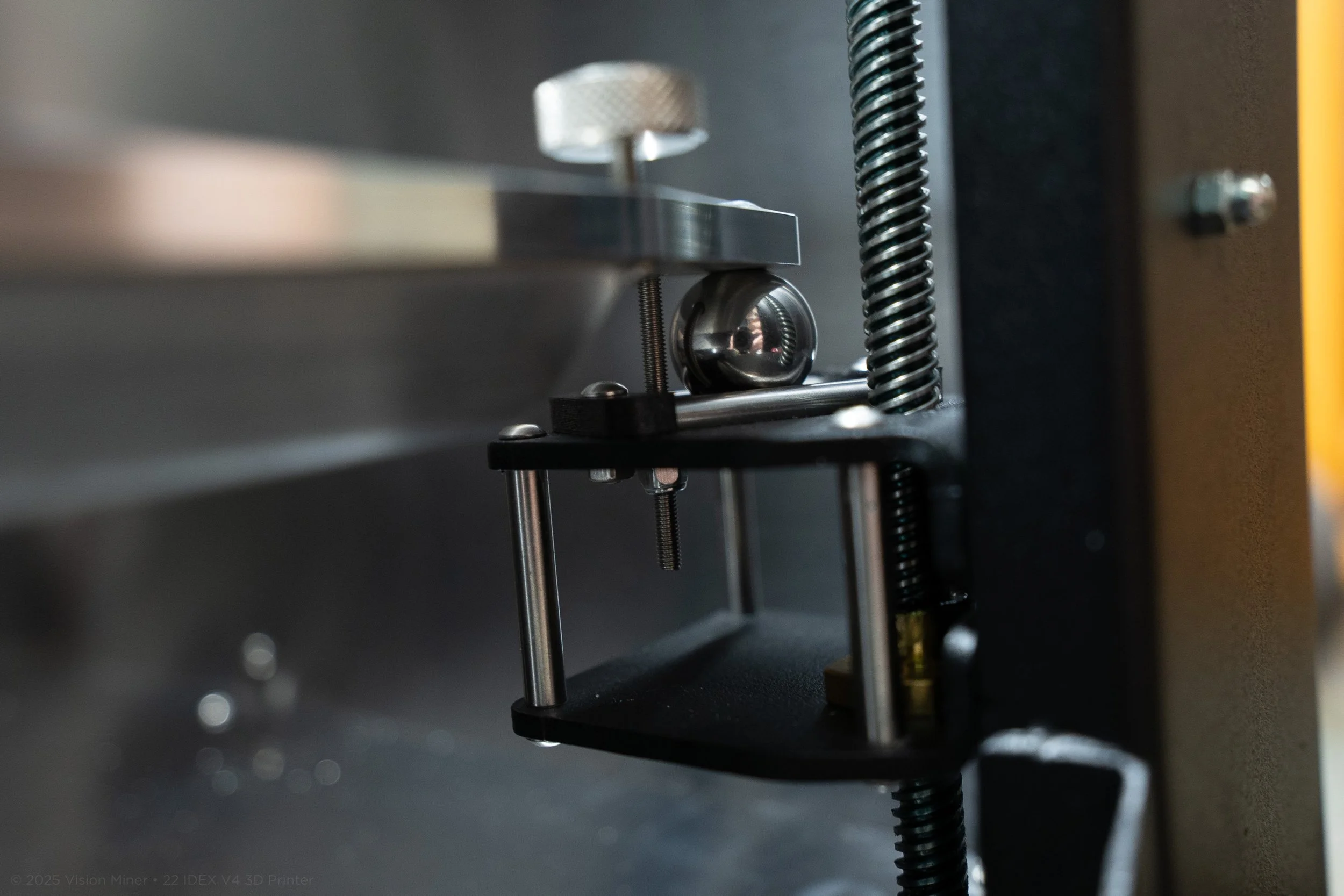

True Self-Leveling Build Platform
Never manually level your bed again. Triple Z-Axis motors enable true self-leveling of the build platform, combined with 128-point+ mesh leveling (technically unlimited points), so the hotends will compensate for any variation in the build surface.
On top of that (literally), the QUAD-motor XY gantry squares itself -- your parts will maintain accuracy over time, without having to constantly recalibrate.
200ºC Build Platform
Actively Heated Chamber

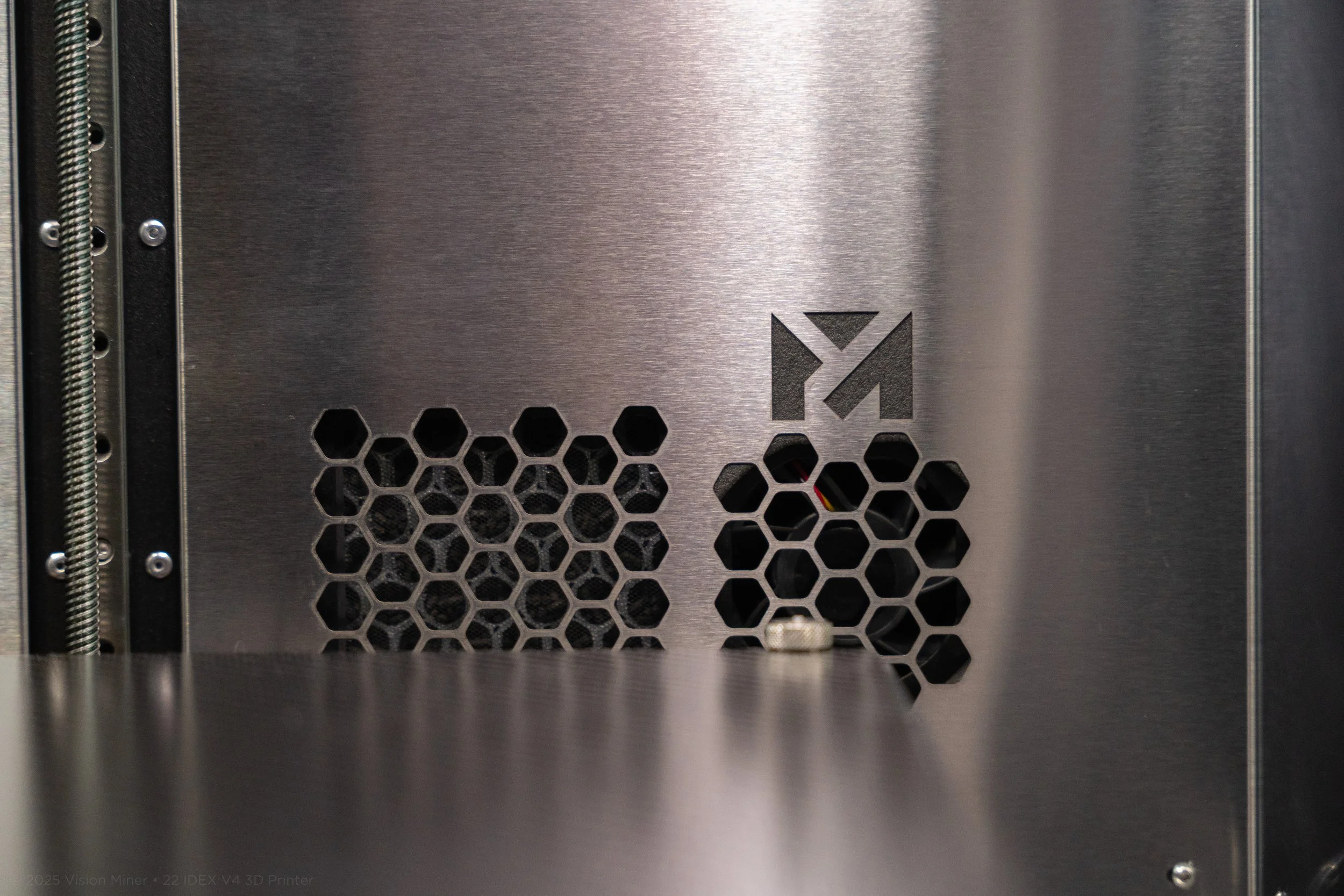

Performance thermoplastics are next to impossible without a heated build environment - the 22 IDEX heats up to 100ºC+, enabling functional high-temp materials with solid mechanical properties. Dual chamber thermistors monitor the temperature, with auxiliary convection fans ensuring an evenly-heated build volume.
100ºC+ Chamber
Up-to-date RepRap firmware on Duet 3
The latest and greatest firmware comes installed on your 22 IDEX, and there are always up-to-date links to the latest versions available in our documentation.
Unlocked Firmware
1.75mm Open-Filament FFF/FDM System
Not locked into proprietary materials, limited nozzle temperatures, or overly-expensive branded filaments... we carry the best materials we can find, at Vision Miner, from several sources -- but you're ALWAYS welcome to use your own. FAR 25.853, UL94 V0 rated materials, and more.
Unlimited Materials
AN ALL-IN-ONE INDUSTRIAL PRINTER
500ºC
NOZZLE
200ºC
BUILD PLATE
100ºC+
HEATED CHAMBER
350 x 350 x 450mm
BUILD VOLUME
ALL MATERIALS
PEEK, ULTEM, CF NYLON, +MORE
AMERICAN SUPPORT
TRIPLE Z-MOTOR
TRUE SELF-LEVELING
DRYS FILAMENT INSIDE
AUTOMATIC X/Y ALIGNMENT
DUAL INDEPENDENT EXTRUDER
+ BONDTECH LGX EXTRUDERS
+ SLICE ENGINEERING HOTENDS
LINEAR RAILS
