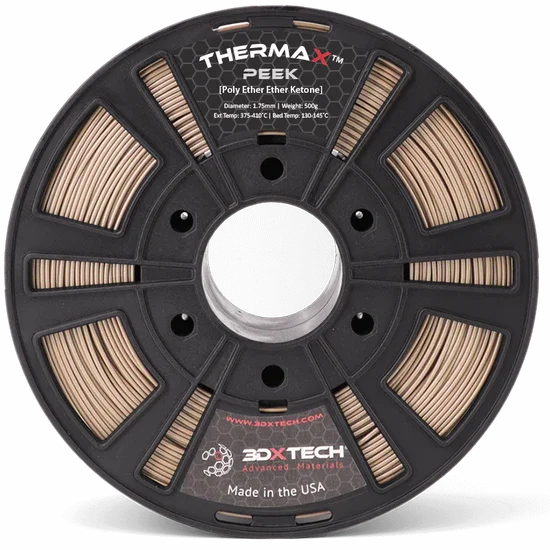

ThermaX™ PEEK (PolyEtherEtherKetone) is one of the highest-performance polymers in world. PEEK filament is made using a proprietary processing technique that allows for lower extrusion temperatures than other PEEK filaments on the market and is therefore easier to print with.
PEEK Attributes Include:
Glass Transition Temp (Tg) of 143°C
Melt Temp (Tm) of 343°C
Inherent flame resistance (UL94 V-0)
Outstanding mechanical, thermal, and chemical resistance
Continuous Use Temperature (CUT) of 260°C, higher for short duration
Excellent resistance to a broad range of chemicals, such as those used in the oil/gas, automotive, aerospace, industrial, and chemical processing industries
PEEK has exceptional mechanical, thermal, and chemical resistance properties making it a go-to material in some of the most demanding applications. The Polyaryletherketone (PAEK) family of thermoplastics exhibit exceptional thermal, chemical, and mechanical properties.
Filament Specifications:
Diameter: 1.75mm (+/- 0.05mm)
Colors: Natural/Tan
Larger reel quantities available upon request
Recommended Print Conditions:
Extruder Temp: 375 - 410°C
Bed Temp: 130 - 145°C
Bed Prep: Nano Polymer Adhesive
Enclosure temp (if your printer is equipped): 70 - 140°C [hotter is better, up to 140°C]
Print Speed: 10-50 mm/s for 0.2mm layer height, fast as results dictate
